SOT-23 LED

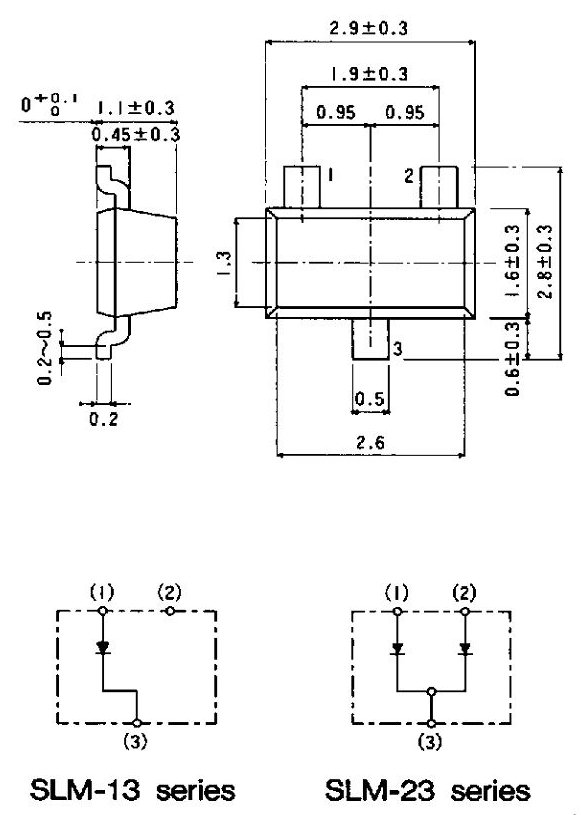

My sample LED is the same as this datasheet found on line.
I initially did not view this upside down and was confused
but this drawing is correct.
